Grooved Board Acoustic Solutions Grooving Wood Acoustic Sheet

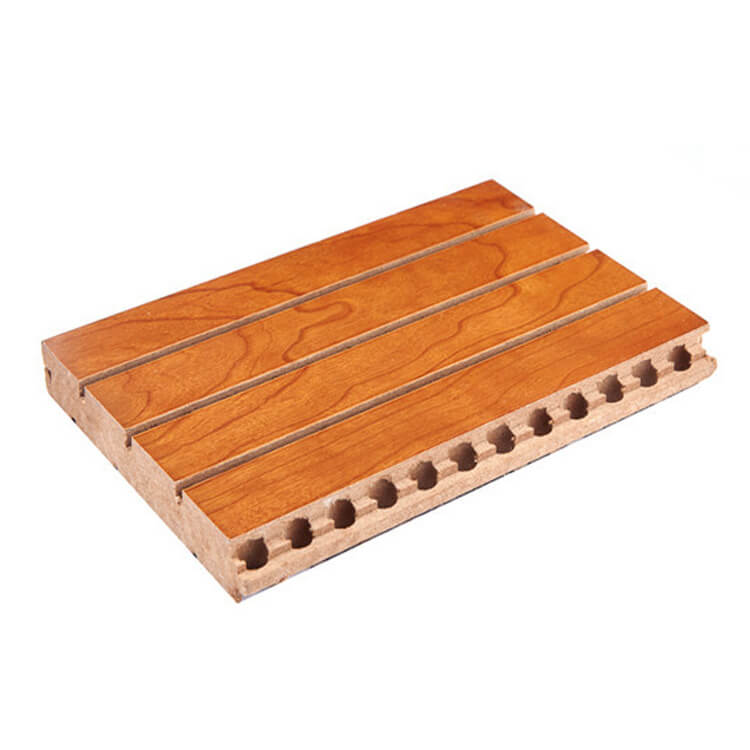

Our wooden grooved board consists of three layers: the substrate, the front and the back. We use MDF as a substrate, laminated with melamine or natural wood plywood on the front surface. A series of grooves are made on the front surface, while a series of round holes are perforated on the rear surface. And then stick a layer of black acoustic fleece on the back of the substrate of wood grooved acoustic board.

Grooved Board Acoustic Solutions Specifications

1. Structure: base material acoustic sheet, surface treatment and backwards
2. Basic material: E1 MDF
3. Front Finish: melamine
4. Back Finish: black acoustic tissue
5. Standard size: 2440 * 128, 2440 * 192 mm
6. Standard thickness: 18mm/ 15mm / 12mm acoustic board
7. Standard Patterns: 28 – 4 tongue and groove board
8. Installation (1) Light steel keel system (2) Wood batten system
9. Fire rate: can reach the Chinese standard B1 level and BS476 seventh class 1 level
10. Eco Level: can meet China and EU E1 standards
11. Application: gymnasiums, hotels, exhibition centers, schools, studios and so on

Tested by the China Fire Materials Testing Center and a number of other professional institutions, our wood acoustic plate has reached the national B1 fire safety standards, the EU formaldehyde emission standards for the E1 level and the international reverberation time standard. Acoustic MDF grooved board can make the sound more clear, noisy and stereo, in line with the modern decoration industry “return to nature” trend, providing a good choice for people looking for high-quality acoustic materials.

Standard graphic: 13-3, 14-2, 28-4 and sound absorption frequency characteristic curve

Sound absorption frequency characteristic curve

Installation of Grooving Wood Acoustic Panel

(1) light steel keel system
(2) Wood batten system

Our wooden acoustic panels are usually mounted on keel (slats). The keel can be light steel keel or wood keel. Our main light steel kneel standard size is 18 * 26 * 3000mm, the clip size is 45 * 38mm.

If you have any questions on acoustic board price, please contact us.
