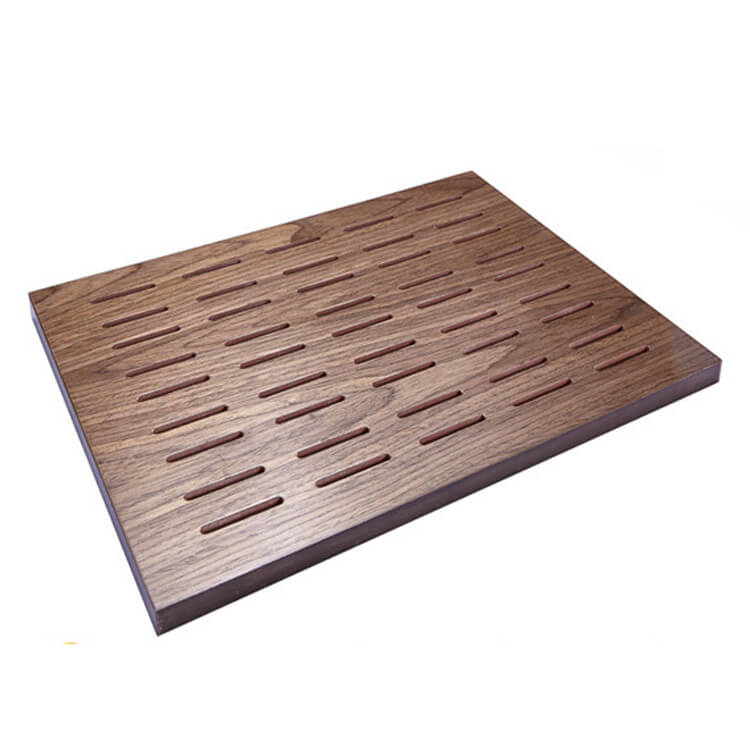

Slotted Wood Panels Acoustic Panels Manufacturers Decorative Wood Wall Plank

Slotted wood panels are usually made of MDF sheet with a density of 720 kg / m³ or an MDF sheet according to the user’s requirements by acoustic panels manufacturers. As high quality acoustic panels, the application of slotted wood panels includes theater, concert hall, gymnasium, piano room, school, entertainment, hotel, KTV, factory, senior villa or family life, and acoustics, theater, studio, studio, studio, concert hall, conference hall, concert hall, etc.

Slotted Wood Panels Specifications

1. Structure: base material, surface treatment and backwards
2. Base material: Core material: 15mm or 18mm thick MDF sheet.
3. Topcoat: paint
4. Back Finish: black acoustic fleece
5. Standard size: 600×600, 600x1200mm and so on
6. Standard thickness: 12 / 15 / 18mm wood wall panel
7. Standard Patterns: slotted decorative wood board
8. Installation (1) Light steel keel system (2) Wood batten system
9. Fire rate: Slotted wood decoration wall can reach the Chinese standard B1 level and BS476 seventh class 1 level
10. Eco Level: Slotted wood veneer panels can meet China and EU E1 standards
11. Application of decorative wood wall plank: gymnasiums, hotels, exhibition centers, schools, studios, curved acoustic panel and so on

Surface treatment for sound acoustic wall panels: Melamine finishes (Please choose from our company’s color card), wood veneer, HPL, and paint.

Sound absorption fleece: The color is black, pasted on the back of the sound-absorbing panels.
Plate width: 600 mm or meet customer requirements.
Slab length: 1200 mm or customized according to customer requirements.
Tolerance: width 0.1mm, length 2mm.

Sound absorption frequency characteristic curve

Installation System

(1) light steel keel system
(2) board system
