Soundproof Mat Sound Proofing Floor Underlay Mat Acoustic Underlay Mat Felt Mat Underlay

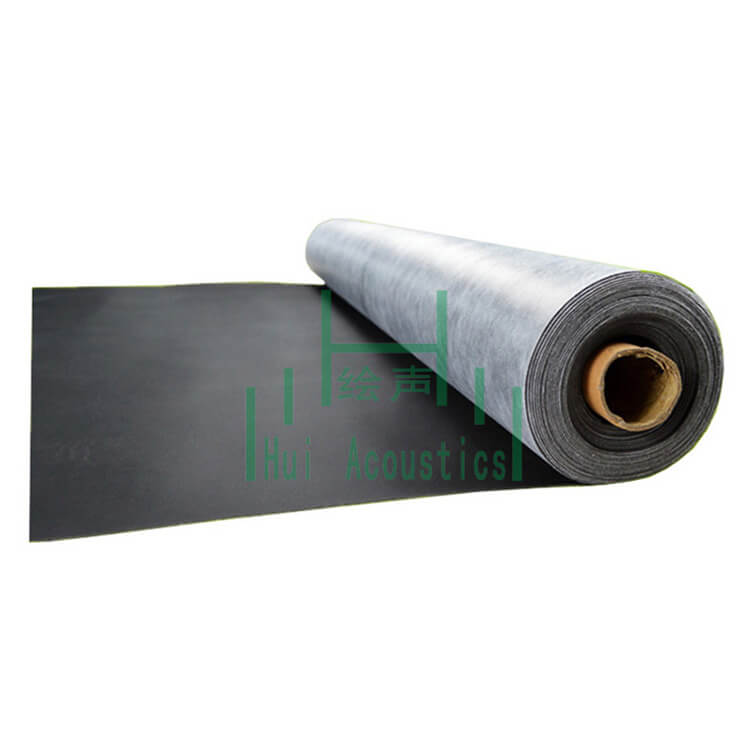

Soundproof mat, also known as mass loaded vinyl, is used to reduce airborne sound through walls, floors and ceilings. The acoustic mat usually consists of a massless material sound barrier made of high temperature molten vinyl. The typical weight of these obstacles is 1667kg/m3, as heavy as a stone, but only 3mm or 2mm thick. This improves the sound transmission loss (STC) of building components without losing valuable space. The sound absorbing mat can be used for new and modified sound insulation structures. Standard sound proof mats are non-reinforced barriers for typical structures. Other configurations include, felt mat underlay, hysteresis and wrap materials for pipes and pipes, transparent versions that allow for on-site or light lines, surface mount options, and enhanced versions that can be hung. The acoustic underlay mat materials are often combined with other materials used in sound insulation applications to help provide a complete sound insulation solution.

Soundproof Mat Specifications

Thickness: 2mm or 3mm
Size: 1000mm*5000mm*3mm or 1000*10000*2mm
Color: Black vinyl with Silver backer
Type: Reinforced acoustic block price
Flammability: B Grade
Color: Black Vinyl with Silver Backer
Weight: 5.5 kg/sqm for 3mm and 4 kg/m2 for 2mm
Tensile Strength: 400 P.S.I. Request
Tear Strength: 12.9 Kg/Cm (72 Lb/in)
Ultimate Elongation: 40% (Min.)
Temperature Range: -40 Deg. F to 180 Deg. F
Transport Package: Pallet, Carton and Plastic Film
Specification: 1000mm*5000mm*3mm or 1000*10000*2mm

Mass Loaded soundproof mat is a very difficult task and it is very easy to use Mass Loaded Vinyl. MLV mat underlay is ideal for use as a sound barrier on walls and ceilings. Acoustic mat is a thin but ultra-high density rubber-like material which is also called sound insulation felt. It is flexible and heavy, making it suitable for all waterproof applications. It is non-toxic and is the best alternative to soundproofing materials.

MLV sound proofing floor underlay mat adds a good STC value to any wall or ceiling by adding weight. It is good to stop the frequency from 4000 Hz to 125 Hz. Please note that because MLV is so heavy transport is quite expensive. For larger batch sizes, use a 20GP or 40HQ container.

Sound Proof Mat Application

Mass Loaded sound proof mats are suitable for reverberation and is effectively used in conference centers, exhibition halls, stadiums, cinemas, schools, churches and recording studios.
