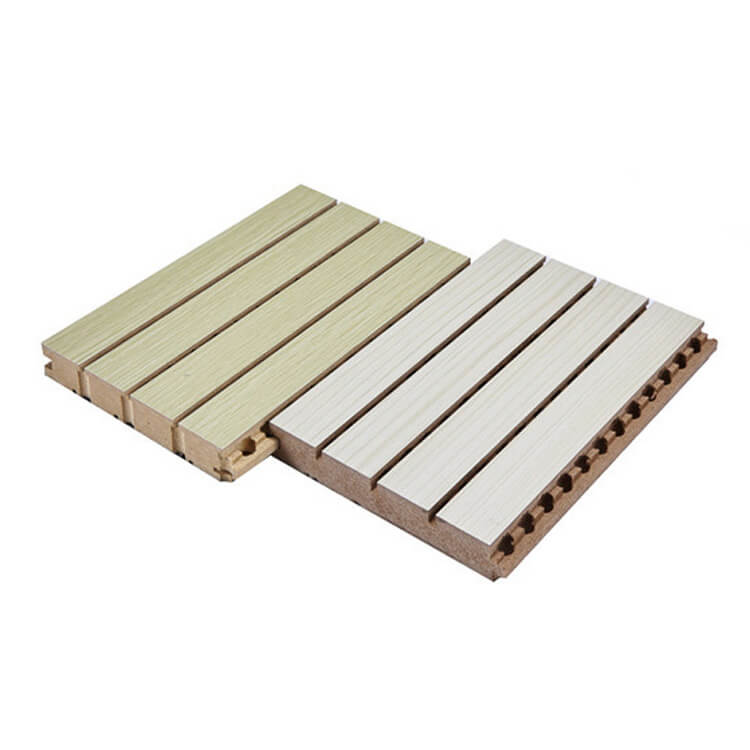

Tongue And Groove Board Acoustic Materials MDF Tongue And Groove Panelling

MDF Tongue and Groove Panelling Specifications

1. Structure: base material, surface treatment
2. Base material: FR MDF
3. Front Finish: Melamine, 100 colors
4. Back Finish: black acoustic fleece
5. Standard size: 2440 * 128, 2440 * 192 mm and so on.
6. Standard thickness: 15 / 12 / 18mm
7. Standard Patterns: 13-3, 14-2, 28-4 grooved panels.
8. Installation: (1) light steel keel system (2) wood grain system
9. Fire rate: Can meet the Chinese standard B1 and BS476 Part 7 Class 1
10. Eco level: Tongue and groove insulation panels can meet the EU and EU E1 standards
11. Applications: Gymnasiums, hotels, exhibition centers, schools, studios and so on.
12. Customization: Can be customized
13. Tolerance: width 0.1mm, length 2mm.

Tongue And Groove Board Feature:

Technology industry: Combing a variety of materials according to the principle of acoustics, tongue and groove wall panels have excellent noise reduction and sound absorption performance. It’s particularly good at low and middle frequency sound absorption.

Art products: With melamine or natural wood veneer finish reflects the bright and beautiful style of modern rhythm, tongue and groove board acoustic treatments panel is an excellent product decoration material.

Environmentally friendly products: All acoustic materials are in line with national environmental standards. The formaldehyde content is very low, and the product also has a natural wood aroma. B1 fire rating is available which the highest level of wood product that can reach.

Easy to install: Tongue and groove MDF can be easily installed with just nails or our keel system.

Industrial production: With automatic control equipment, large-scale production of acoustic board not only improves production capacity, but also to ensure product quality.

Tong and Groove Board Applications:

As one the most popular types of acoustical materials, tongue and groove board is often used in theater, concert hall, gymnasium, piano room, school, entertainment, hotel, KTV, factory, senior villa or family life, and acoustics, theater, studio, studio, studio, concert hall, conference hall, concert hall, etc.

Acoustic Tongue and Groove Board Installation System

(1) Light steel keel system
(2) Woo batten system
